数据中心适用 - D系列

现代数据中心设计利用各种经过优化的储存外形规格来满足特定的容量、效能和功能需求。PASCARI D系列产品针对机柜空间配置及大规模效能连动需求而生,助力数据中心实现弹性调度及功耗管控。

Pascari_Logo_RGB_Blue_160

D205V

超大容量 PCIe Gen5 数据中心存储解决方案以降低营运成本

超大容量 PCIe Gen5 数据中心存储解决方案以降低营运成本

群联的超大容量D205V 数据中心 SSD 实现了比 HDD 大4 倍的容量优势,使得在单一服务器上可处理更大的数据集并降低营运成本。D205V 读取密集型 SSD 提供高达122.88TB 的存储容量,结合了群联业界领先的 X2 控制器和最新的2Tb 3D QLC 技术,可实现无与伦比的14,600 MB/s 顺序读取和3,000K IOPS 随机读取性能。

在人工智能时代,丢弃资料不再是一种选择。人工智能需要结合冷热数据进行机器学习,以建立新模型来预测未来事件和趋势。群联的 D205V 在每瓦容量方面提供领先的效率,为数据成长挑战提供最佳解决方案。

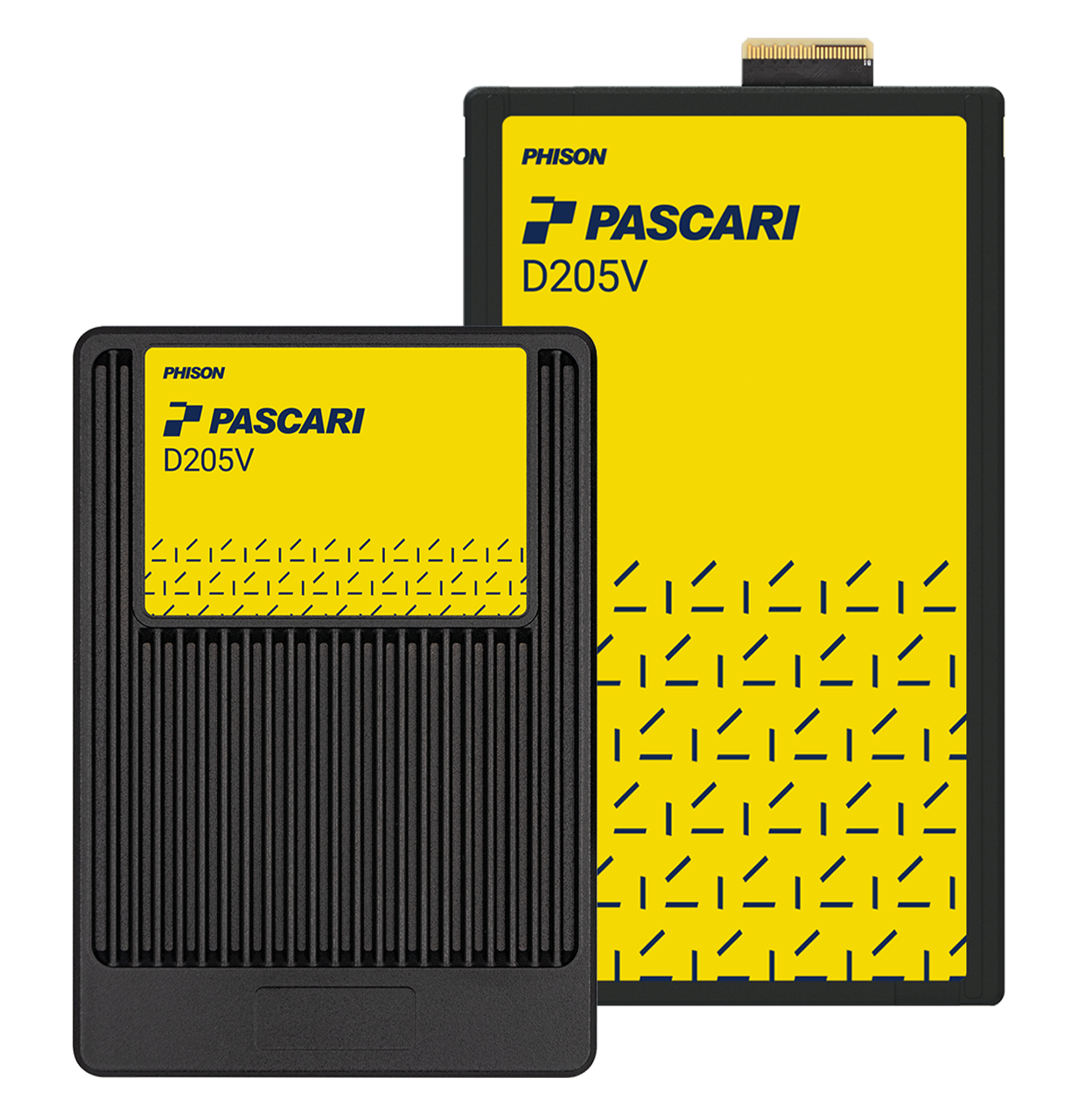

pascari-d205v-product-collage-opt

接口规格

U.2 or E3.L
PCIe Gen 5x4 Dual Port

容量

122.88 TB

固态硬盘功耗

Active: 25W

效能

连续读取 (up to)
14.6 GB/s

连续写入 (up to)
3.2 GB/s

随机读取 (up to)
3,000 KIOPS (4K)

随机写入 (up to)
35 KIOPS (16K)

为您呈现Pascari D205V

Introducing
Pascari D205V

Pascari_Logo_RGB_Blue_160

D200V

高容量 PCIe Gen5 企业级储存解决方案

群联最新的大容量企业级SSD D200V是一款读取密集型的数据中心SSD,每个硬盘容量高达122TB,使其成为传统冷存储解决方案HDD的最佳替代品。只需一个D200V SSD即可存储需要十个HDD的数据。

D200V采用PCIe Gen5接口并搭配行业最新的3D NAND技术,可提供高达14,000MB/s(连续读取)和3,000K IOPS(随机读取)的性能。

在数据呈指数级增长的时代,D200V将有助于推动高效数据存储的趋势,提高空间利用率并降低功耗。

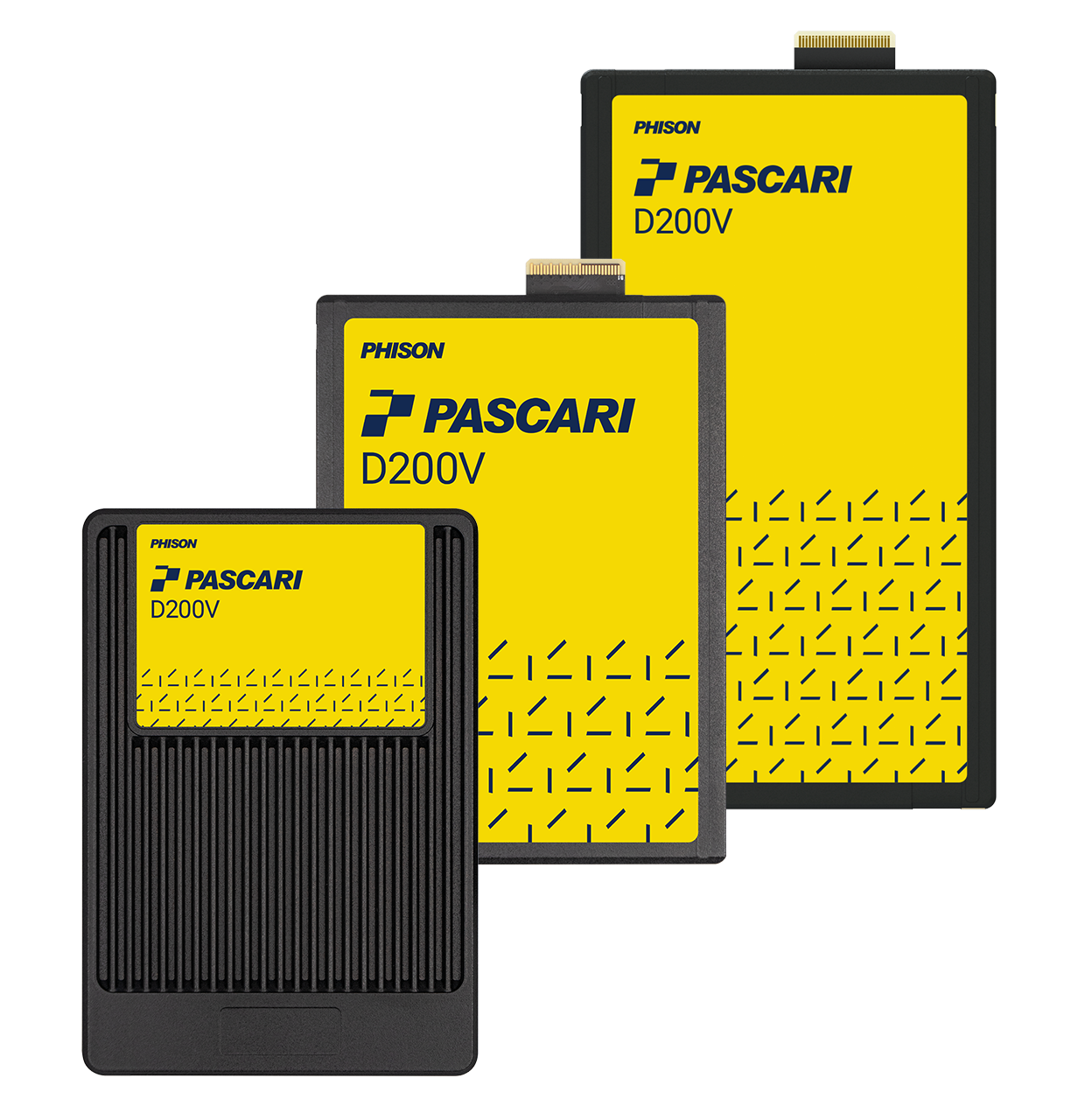

D200V Product Collage

接口规格

U.2, E3.S, or E3.L
PCIe Gen 5x4 Dual Port

容量

30.72 TB up to 61.44 TB

固态硬盘功耗

Active: 25W

效能

连续读取 (up to)
14.6 GB/s

连续写入 (up to)
3 GB/s

随机读取 (up to)
3,000 KIOPS (4K)

随机写入 (up to)
34 KIOPS (16K)

Pascari_Logo_RGB_Blue_160

D200

针对数据中心动态工作负载的高效 PCIe Gen5存储解决方案

Pascari D200 系列基于PCIe Gen5架构,提供卓越性能、电源效率和企业级可靠性,满足数据中心、云端和边缘基础设施不断演进的需求。支援高达7.68TB的容量,并提供E1.S 9.5mm和15mm的外型规格。 D200 系列也符合开放运算专案(OCP)数据中心 NVMe® SSD 2.0 的规范,确保与下一代技术的相容性,是数据中心基础设施升级的理想选择。

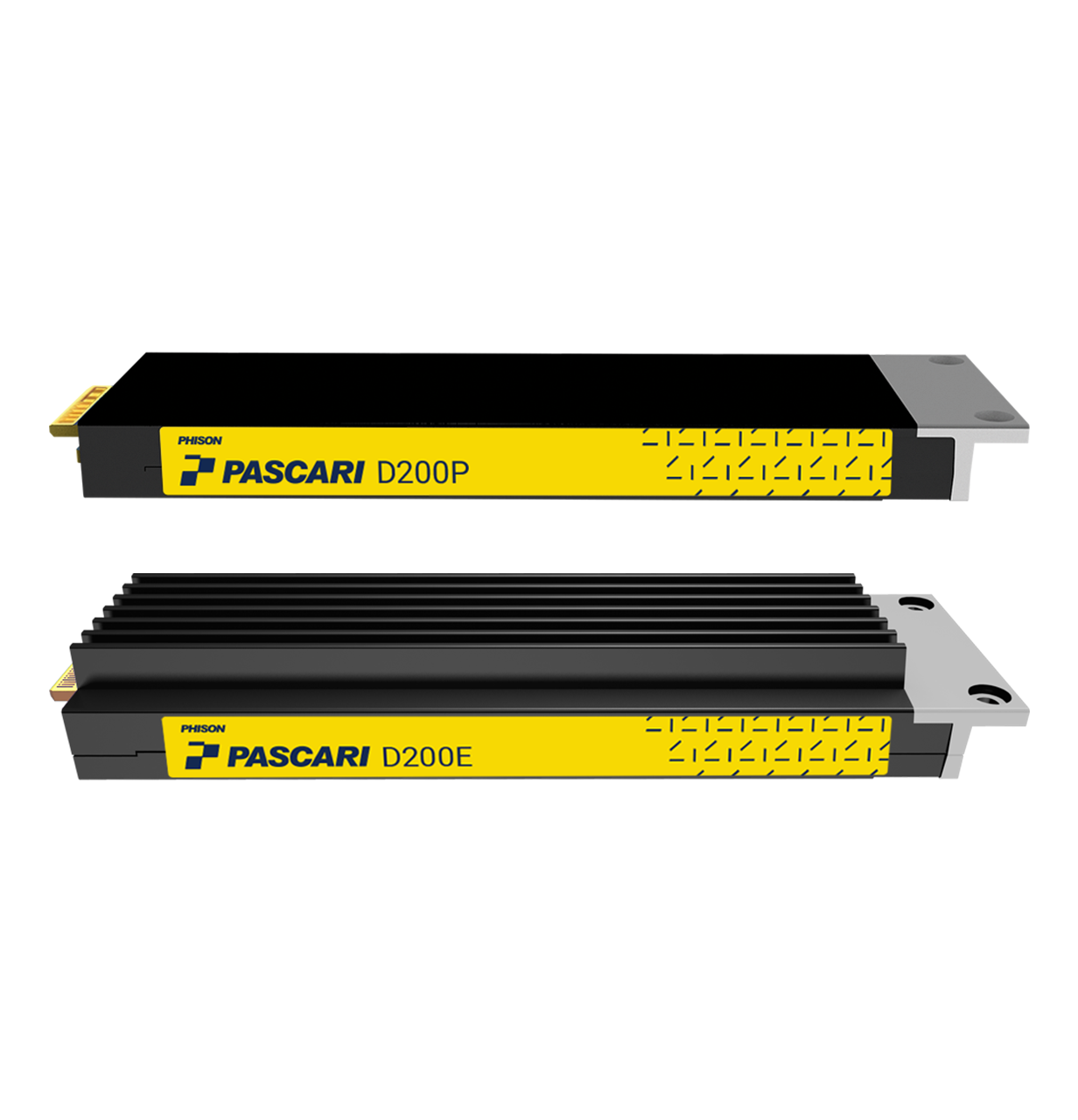

D200E-D200P Combined_051325

接口规格

E1.S
PCIe Gen 5.0 x4

容量

Up to 7.68 TB

固态硬盘功耗

Active: 23W
Idle: 4.9W

效能

连续读取 (up to)
14 GB/s

连续写入 (up to)
8.5 GB/s

随机读取 (up to)
3,300 KIOPS (4K)

随机写入 (up to)
880 KIOPS (4K)

Pascari_Logo_RGB_Blue_160

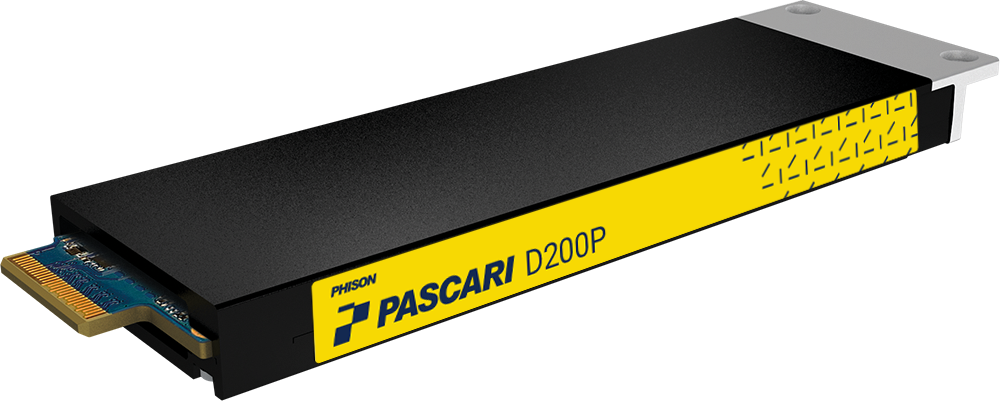

D200P

High-Speed PCIe Gen5 SSD for Read-Intensive Data Centers

High-Speed PCIe Gen5 SSD for Read-Intensive Data Centers

Phison’s Pascari D200P is purpose-built for modern, read-heavy data environments where efficiency and speed drive value. With lightning-fast sequential read speeds up to 14,000 MB/s and up to 3,300K IOPS random read performance, this 1 DWPD SSD is optimized for large-scale querying, AI inference workloads, and high-volume data retrieval. Available in capacities up to 7.68TB, the D200P delivers a powerful mix of performance and endurance in a compact E1.S form factor.

When access to data matters more than rewriting it, the D200P delivers consistent, responsive performance—perfect for hyperscalers and cloud platforms aiming to balance performance, cost, and density in Gen5 infrastructure.

接口规格

PCIe 5.0 x4

容量

1.92 TB up to 7.68 TB

固态硬盘功耗

Active: 16W up to 23W
Idle: 4.9

效能

连续读取 (up to)
14 GB/s

连续写入 (up to)
8.5 GB/s

随机读取 (up to)
3,200 KIOPS (4K)

随机写入 (up to)
420 KIOPS (4K)

Pascari_Logo_RGB_Blue_160

D100

采用M.2和E1.S外型规格的D100 PCIe Gen4数据中心高速存储装置

为数据中心应用而生,透过韧体优化以实现高服务质量(QoS)并缩短指令运行时间。本系列可高度客制,满足合作伙伴应用与品牌的各项需求。

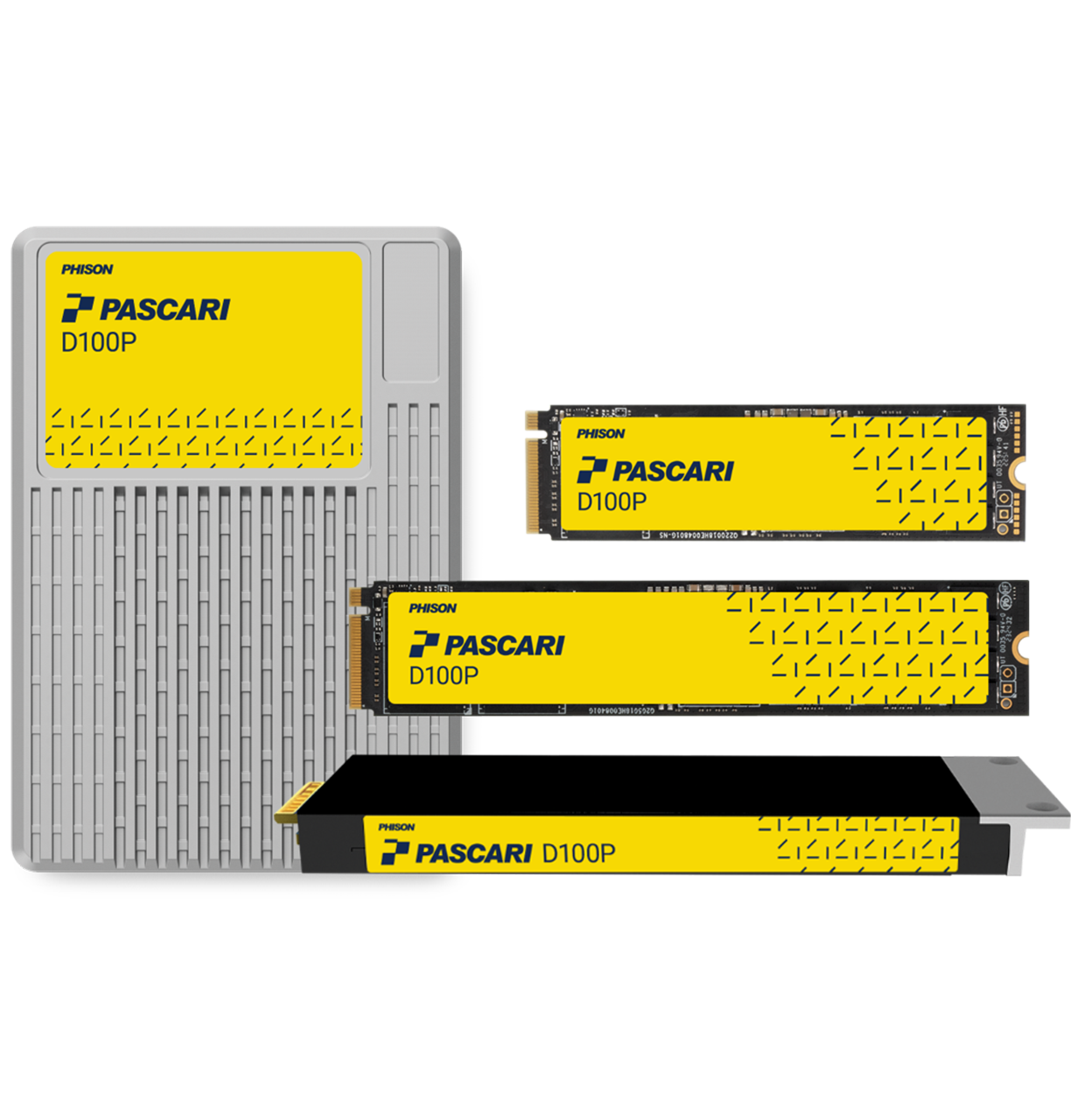

PhisonEnterprise_Label_D100P_10082024

接口规格

PCIe Gen4x4 Single Port
M.2 2280, 22110, E1.S, U.2

容量

480 GB up to 3.84 TB

固态硬盘功耗

Active (up to): 13.5W
Idle (up to): 4.2W

效能

连续读取 (up to)
6.0 GB/s (M.2 2280, 22110)
6.8 GB/s (E1.S, U.2)

连续写入 (up to)
1.8 GB/s (M.2 2280, 22110)
2.0 GB/s (E1.S, U.2)

随机读取 (up to)
800 KIOPs (M.2 2280, 22110)
900 KIOPs (E1.S, U.2)

随机写入 (up to)
60 KIOPs (M.2 2280, 22110, U.2)
70 KIOPs (E1.S)

SEAMLESS INTEGRATION

  • Optimized middleware to extends GPU memory capacity
  • 2x 2TB aiDAPTIVCache to support 70B model
  • Low latency

HIGH ENDURANCE

  • Industry-leading 100 DWPD with 5-year warranty
  • SLC NAND with advanced NAND correction algorithm

aiDAPTIV+ BENEFITS

  • Transparent drop-in
  • No need to change your AI Application
  • Reuse existing HW or add nodes

aiDAPTIV+ MIDDLEWARE

  • Slice model, assign to each GPU
  • Hold pending slices on aiDAPTIVCache
  • Swap pending slices w/ finished slices on GPU

FOR SYSTEM INTEGRATORS

  • Access to ai100E SSD
  • Middleware library license

  • Full Phison support to bring up
